Accessories / Load-Cells

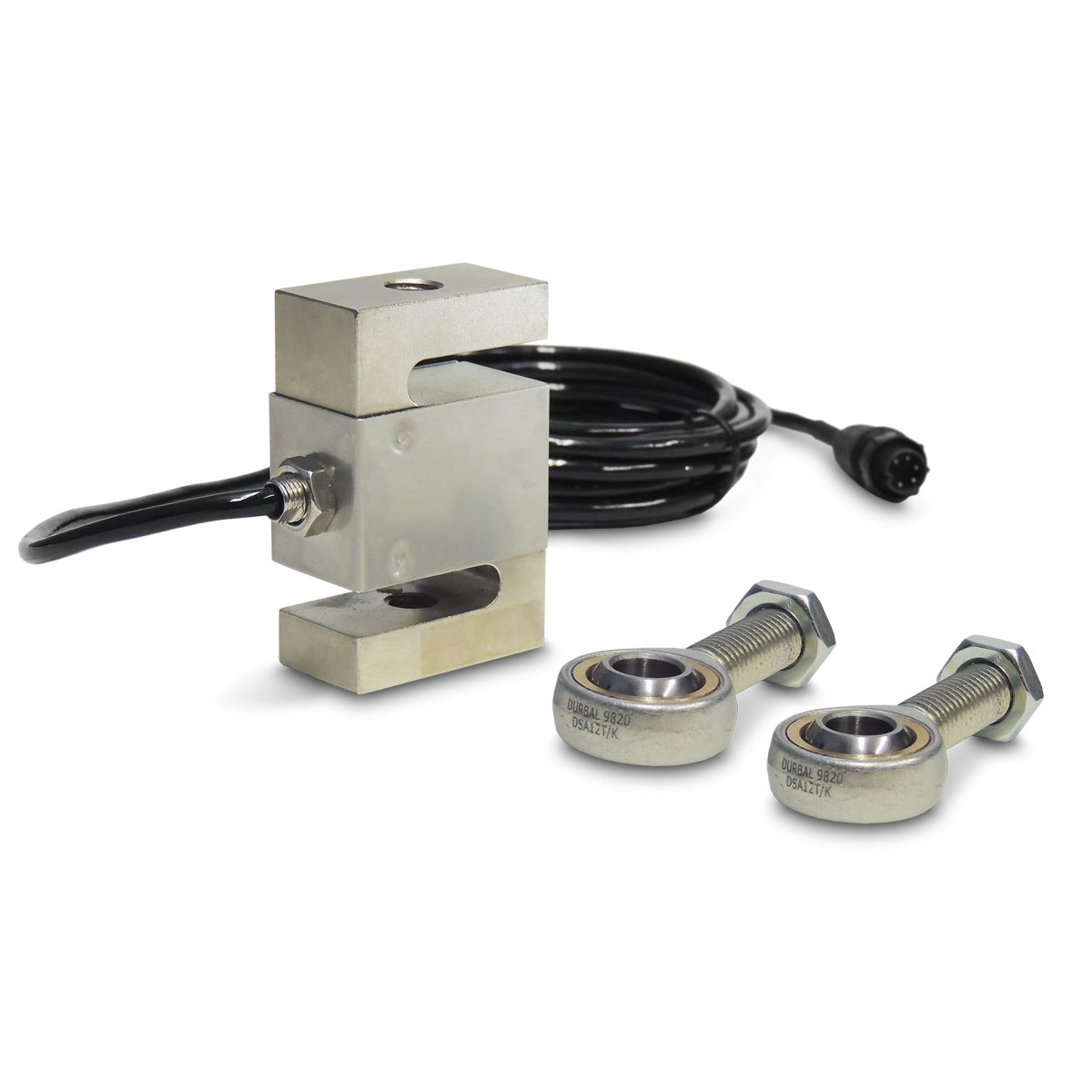

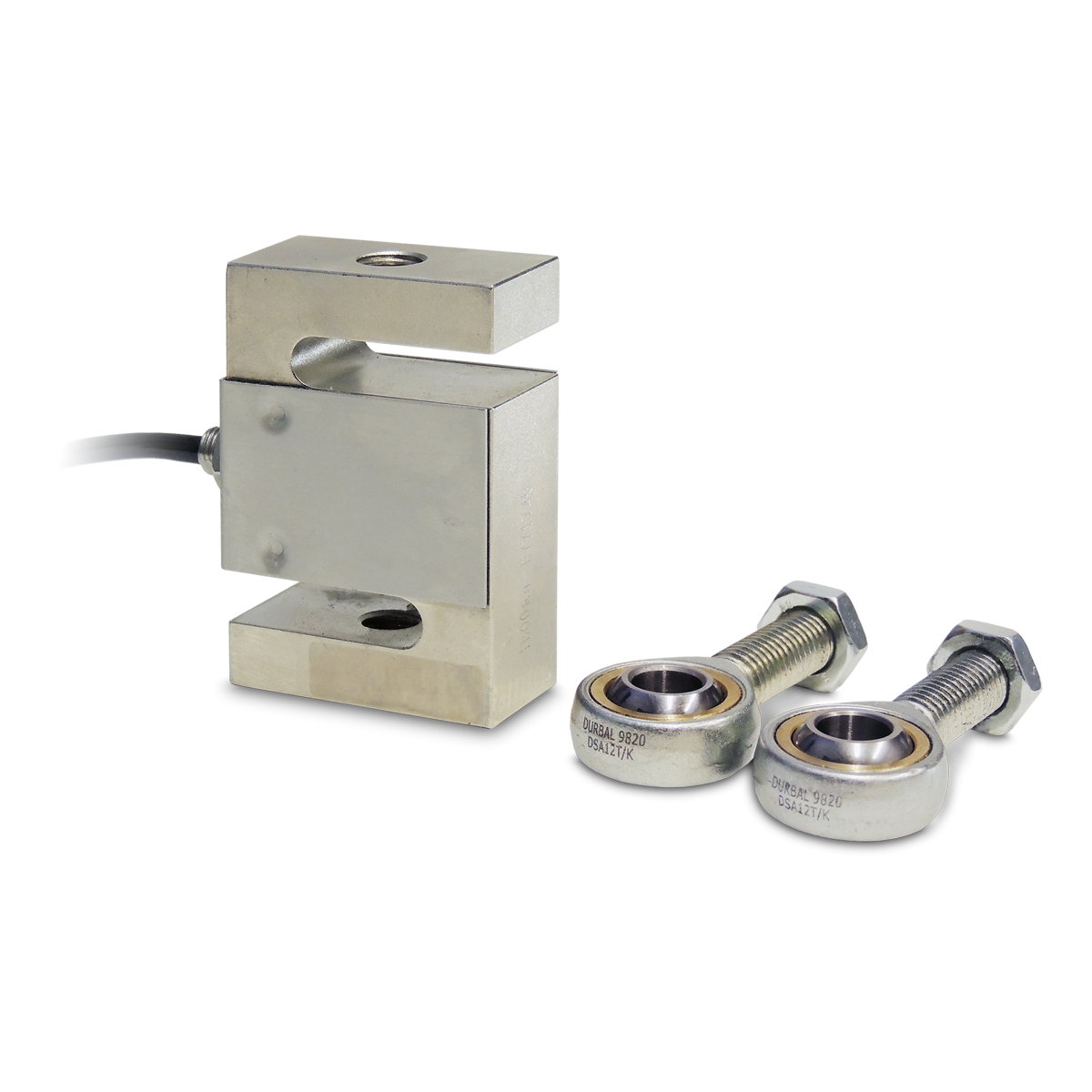

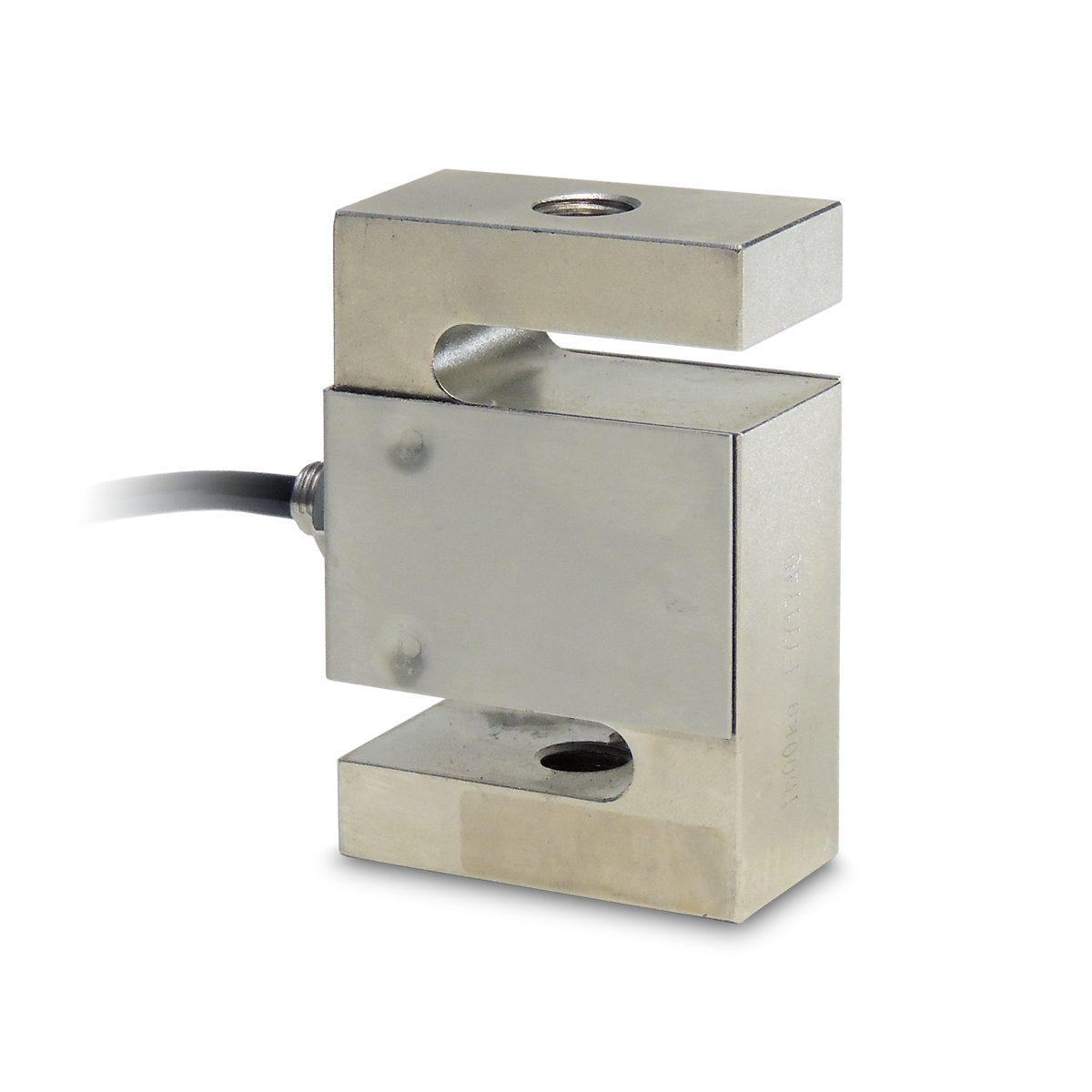

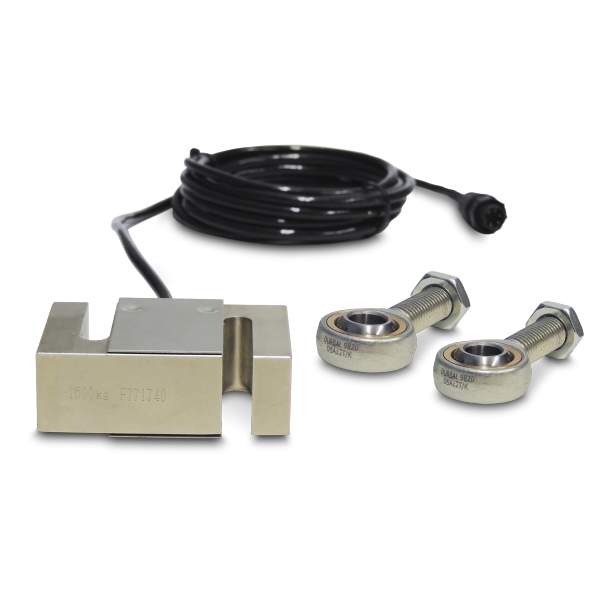

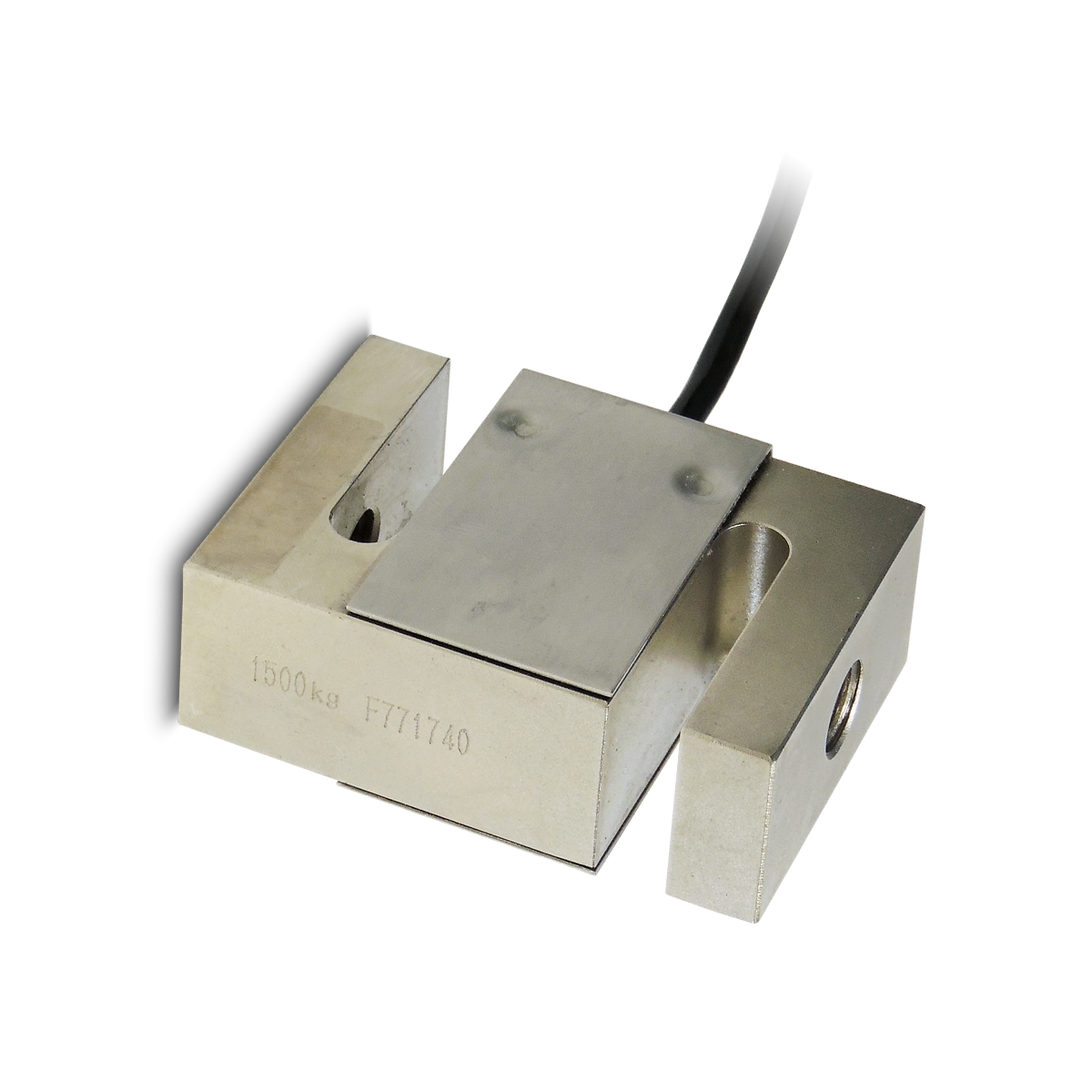

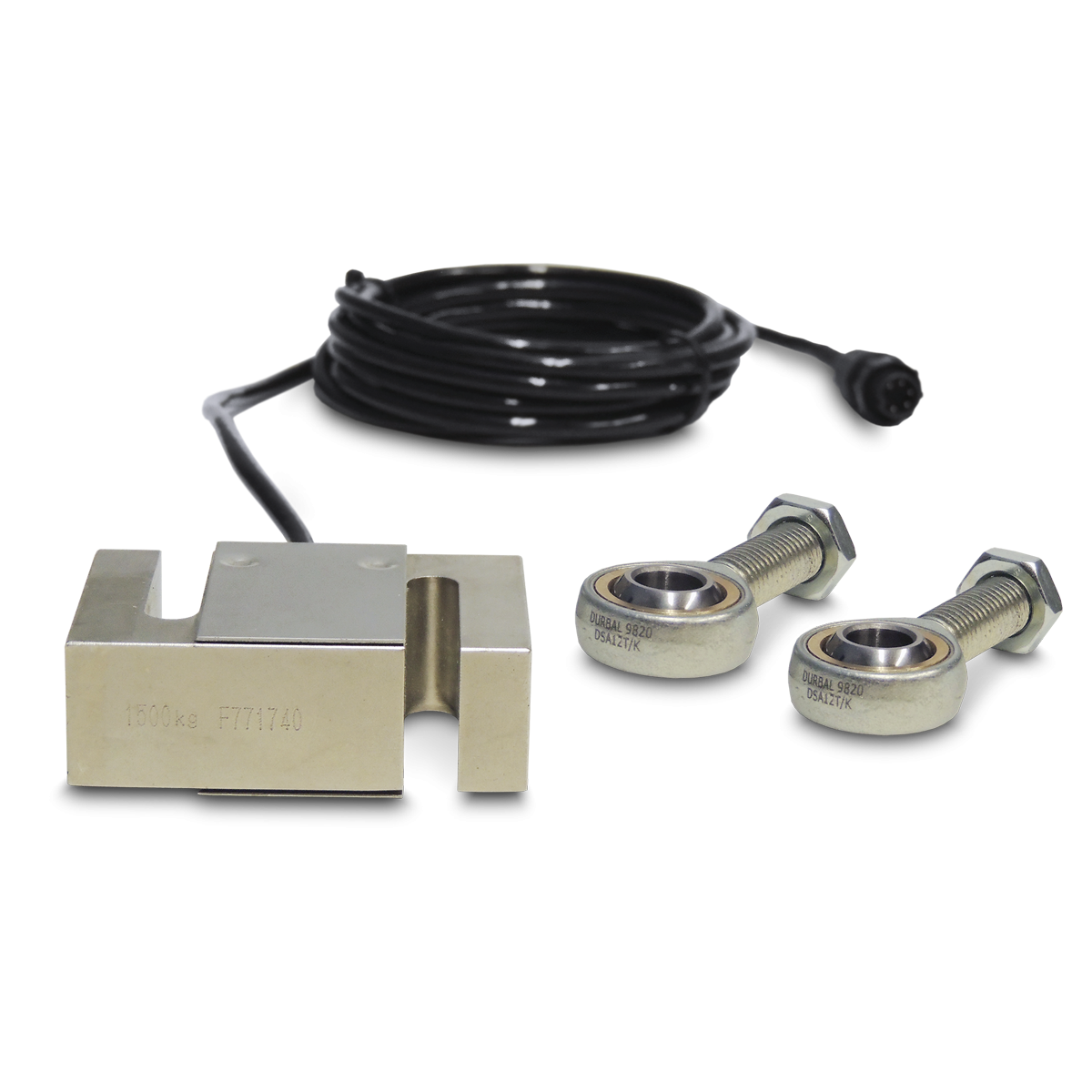

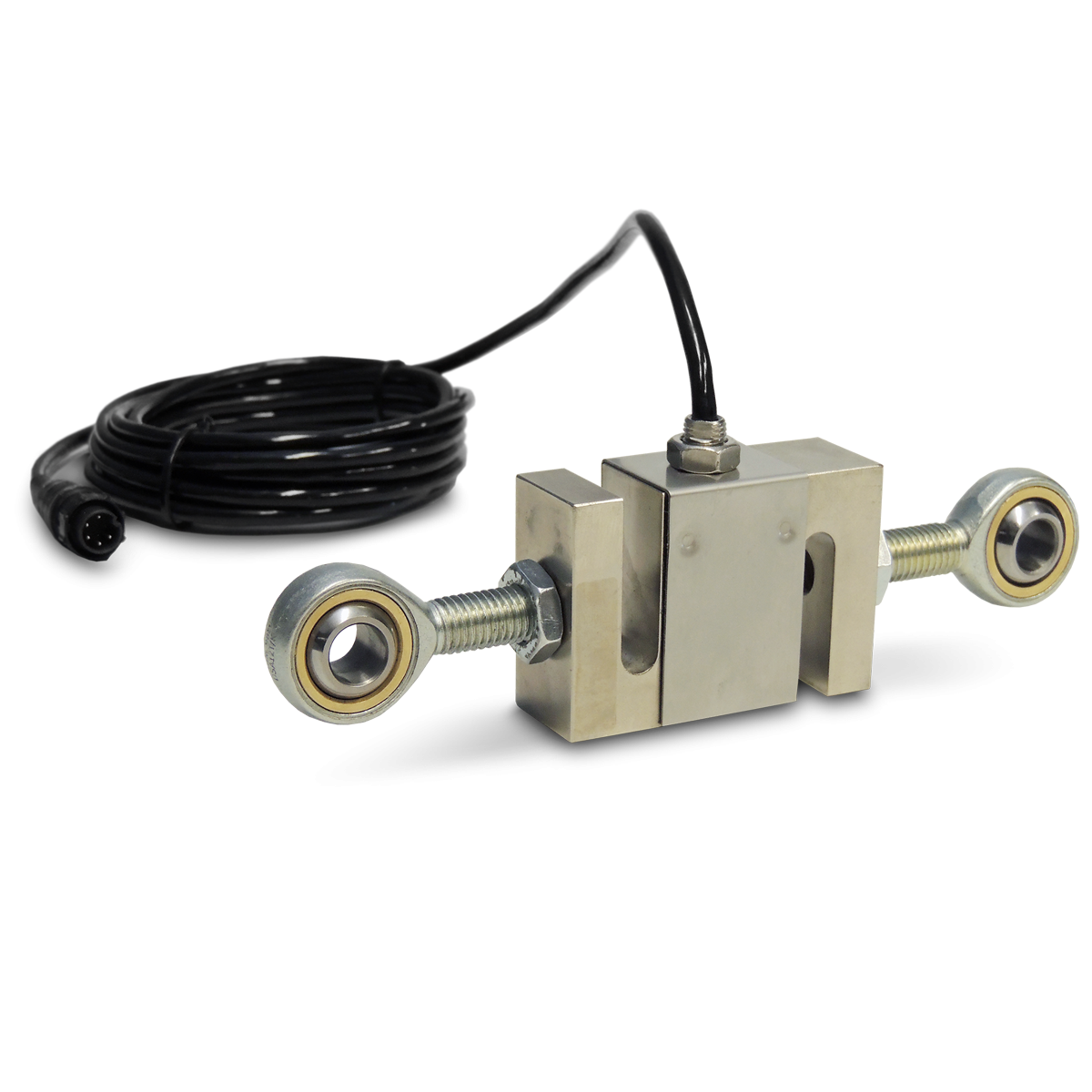

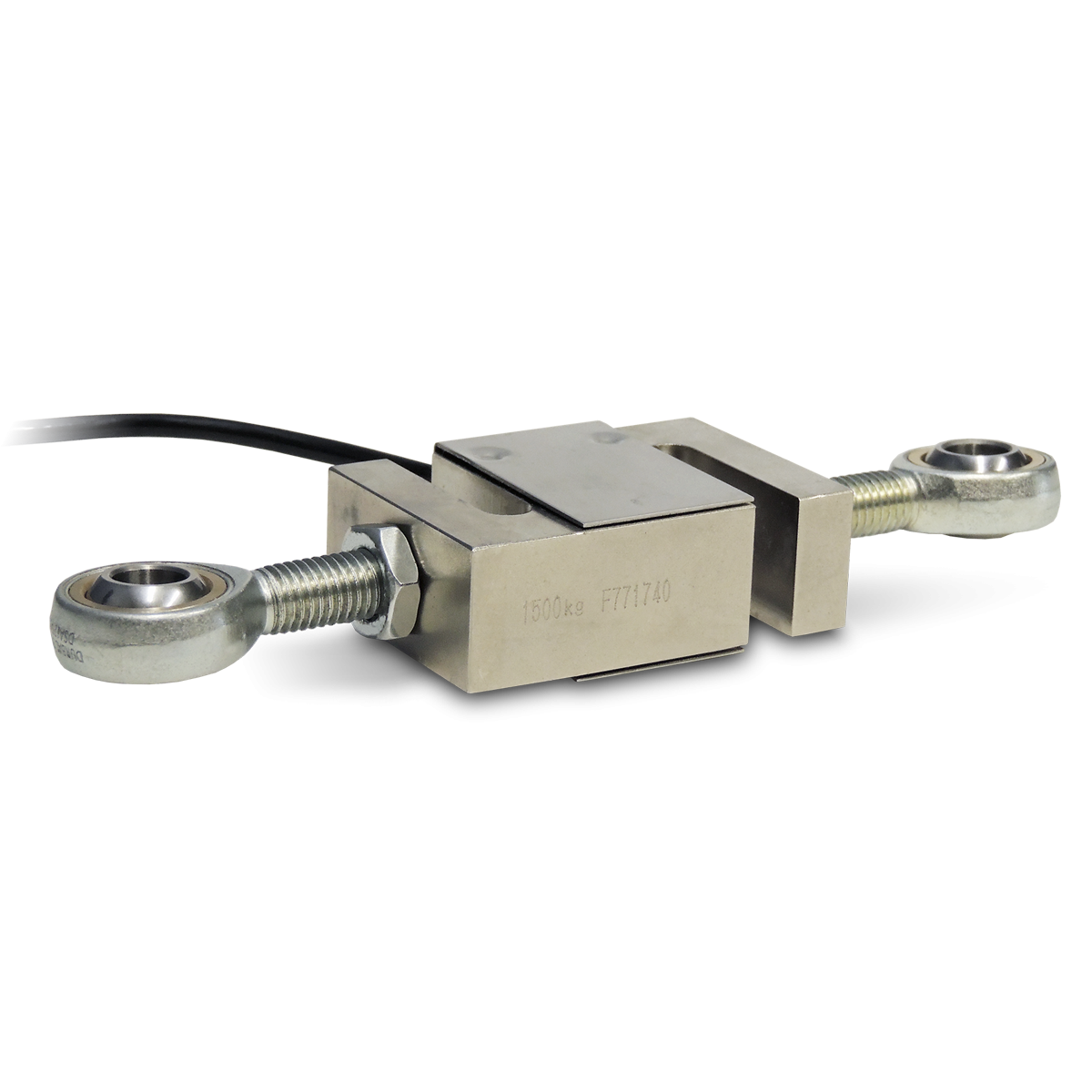

20kN Load Cell
4,000lbF x 1lbF
20kN x 5N
SKU: 301098
Quick overwiev
Designed for high capacity FC ZEUS “k” models ranging from 200lbF to 10,000lbF (1kN to 50Kn). All FC ZEUS force gauges are equipped with load-cell interchangeability feature which allows users to use multiple external load-cell sensor with one force gauge indicator.
• High accuracy
• Nickel plated alloy steel
• 1000 Hz data capture
• Stainless steel construction
• Rated IP67 “S&rdquo
• Low profile
• Designed and tested specifically for tension and compression applications
• Low profile
Read more
Specifications

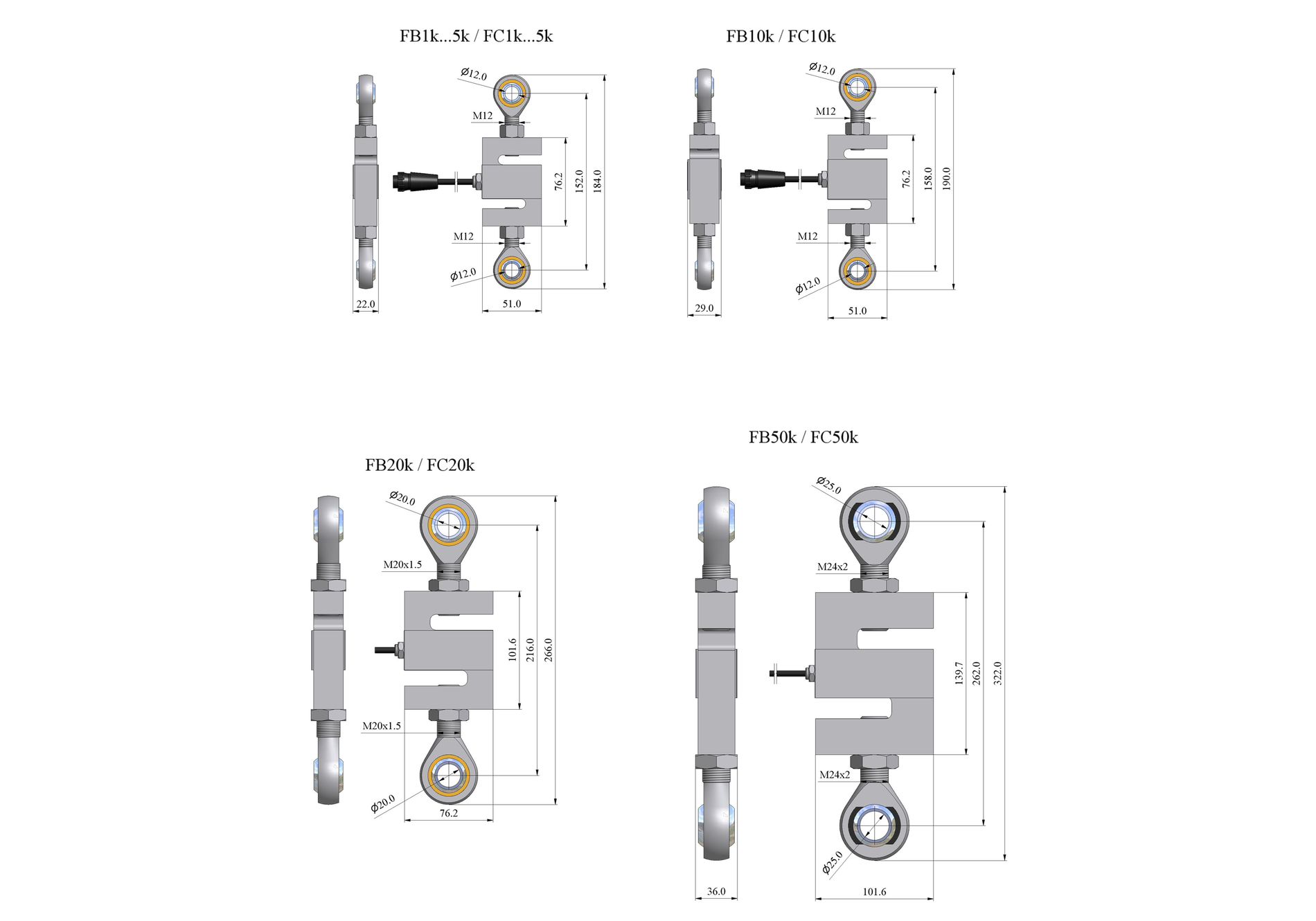

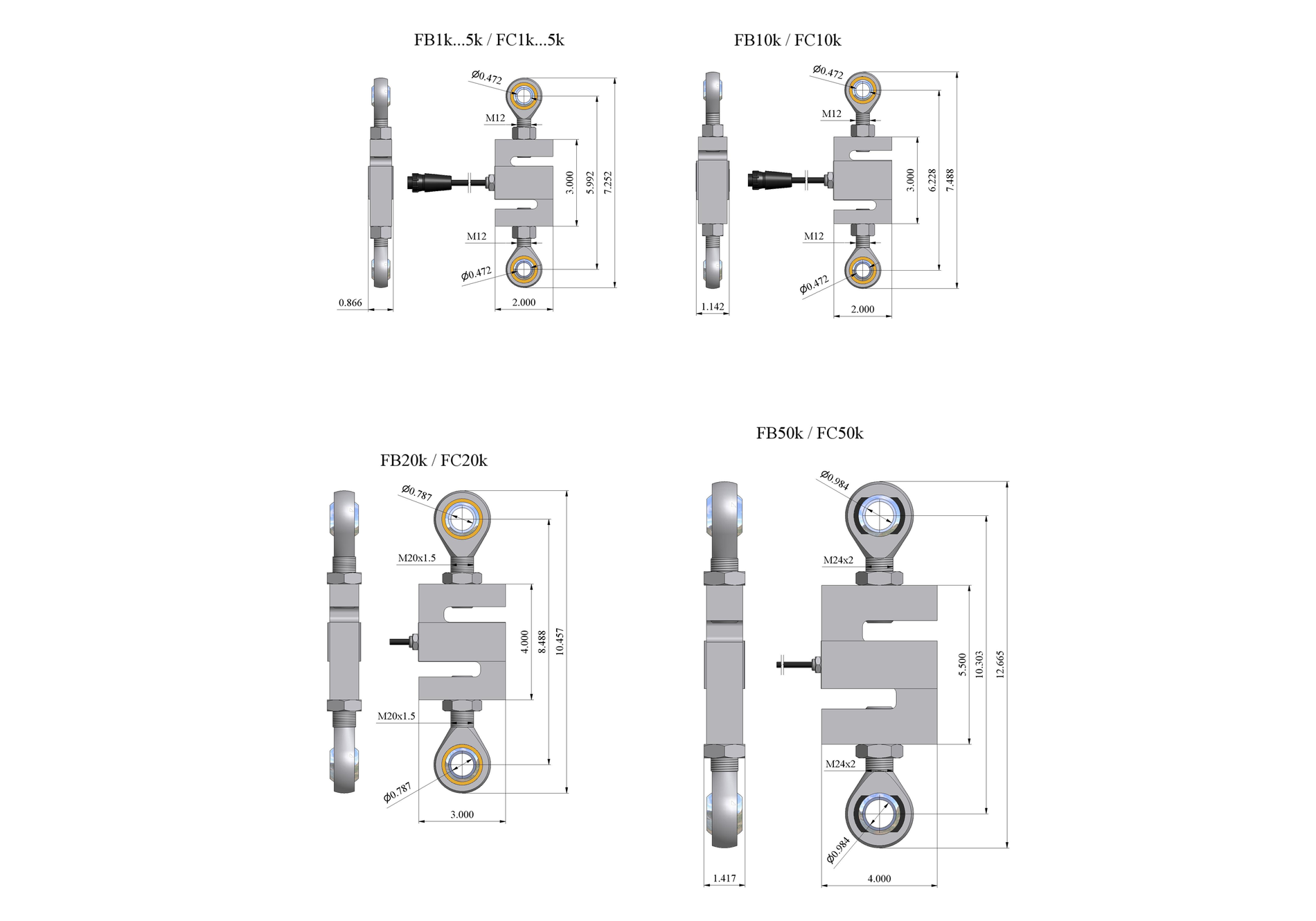

| MODELS | 1k | 2k | 5k | 10k | 20k | 50k |
| Capacity (Max) | 200lbf | 1kN | 400lbf | 2kN | 1,000lbf | 5kN | 2,000lbf | 10kN | 4,000lbf | 20kN | 10,000lbf | 50 kN |
| Resolution | 0.05lbf | 0.2N | 0.1lbf | 0.5 N | 0.2lbf | 1N | 0.5lbf | 2N | 1lbf | 5N | 2lbf | 10N |
| Overload | 200% Full Scale | |||||
| Operating Temperature | 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max. | |||||
| Sensor Cable Length | 9.5ft | |||||
| Warranty | 24 Months | |||||
